Tioga Inn project: Minimal modeling shows significant impacts to the Mono Basin’s scenic resources

The Draft Subsequent Environmental Impact Report (DSEIR) for the Tioga Inn project identified five significant and unavoidable adverse impacts. Despite a large and comprehensive public response voicing concerns over these impacts, the Final Subsequent Environmental Impact Report (FSEIR) declared:

“The significant and unavoidable adverse impacts that were identified in the DSEIR will remain significant and unavoidable if the proposed Tioga [Inn] project is approved, even with modifications proposed in this FSEIR.”

Of these five impacts, impacts to scenic views were the hardest for me personally to fully comprehend since no 3-D models were provided to demonstrate what the project would look like after grading and construction were completed. Notably, the FSEIR acknowledged that project impacts to aesthetic resources were the most common and frequent concern from comment letters. To better understand what the final project as proposed in the FSEIR would look like I conducted a 3-D visualization and viewshed analysis using ArcGIS.

Where in the Mono Basin can you see the project?

The location of the proposed housing is a very prominent location at the foothills of the Eastern Sierra, so finding out that you could see these structures from many vantage points throughout the Mono Basin should not be very surprising, but honestly it was for me. My viewshed analysis (Figure 1) demonstrates that both the one- and two-story buildings will be visible from the entire trail network and water’s edge at South Tufa as well as Navy Beach. However, there are statements from the FSEIR that ambiguously refute the Navy Beach visibility results from my analysis. Two statements summarize this ambiguous point (p66 of the FSEIR):

“The lowered profile, in combination with the redesign of the most prominent structures as 1-story building rather than 2-story structures, also minimizes the line of sight (and thus site visibility) from Navy Beach.”

“Views of the lower six 1-story units would also be entirely screened from view at Navy Beach.”

Whether the line of sight to Navy Beach is minimized or entirely screened is unclear to me from these two statements and there are no qualifications or additional data provided by the FSEIR to help the reader determine the validity of either of these statements. On an intuitive level however, I’m unclear how visibility of the buildings would exist at South Tufa and not at Navy Beach when you consider that Navy Beach is located at a further vantage point with no significant topographic barriers in between.

A colored map shows the Tioga Inn Viewshed, with different colors to indicate whether both, one, or two stories of the project would be visible from those areas. the majority of the map indicates both stories are visible.
Figure 1 – Elevation data sourced from USGS (example metadata found here: https://www.sciencebase.gov/catalog/item/5deb3287e4b02caea0f0ea0d). Elevation is broken up by 10m x 10m pixels (aka 1/3 arc second). Building heights calculated by subtracting USGS elevation from roof elevations sourced from EXHIBT 5.1-2 (Alternative 6 Grading Plan) from the FSEIR. Since there will be no “filling” occurring as part of the grading (only removal), the analysis effectively treats the first row of buildings as all being less than 4.7 meters in order to simulate the effect of the proposed grading (e.g. one of the buildings is treated as being 2.0 meters tall sitting on top of the existing topography in order to simulate a 6.1 meter building on a graded topography). Six “observer points” were created for the first row of houses and another six were created for the second row of houses. These points were assigned heights of each building relative to the existing topography. Using the “viewshed” tool in ArcMap, if a surface is visible by any six observer points, the surface is considered visible. If a surface was not visible by any of the six observer points, the surface is considered not visible.

What would the project look like?

The size of this project is larger than anything Lee Vining has ever seen before. Even with mitigations, including the “Shaker gray” building color and the utilization of some one-story buildings (instead of two-story) on a graded platform, the FSEIR determines that the project will have a significant adverse impact on aesthetic resources and glare. During the comment period for the DSEIR, there were many suggestions for how mitigations could feasibly reduce impacts to less than significant, but this goal was not accomplished in the final Project plan and the FSEIR.

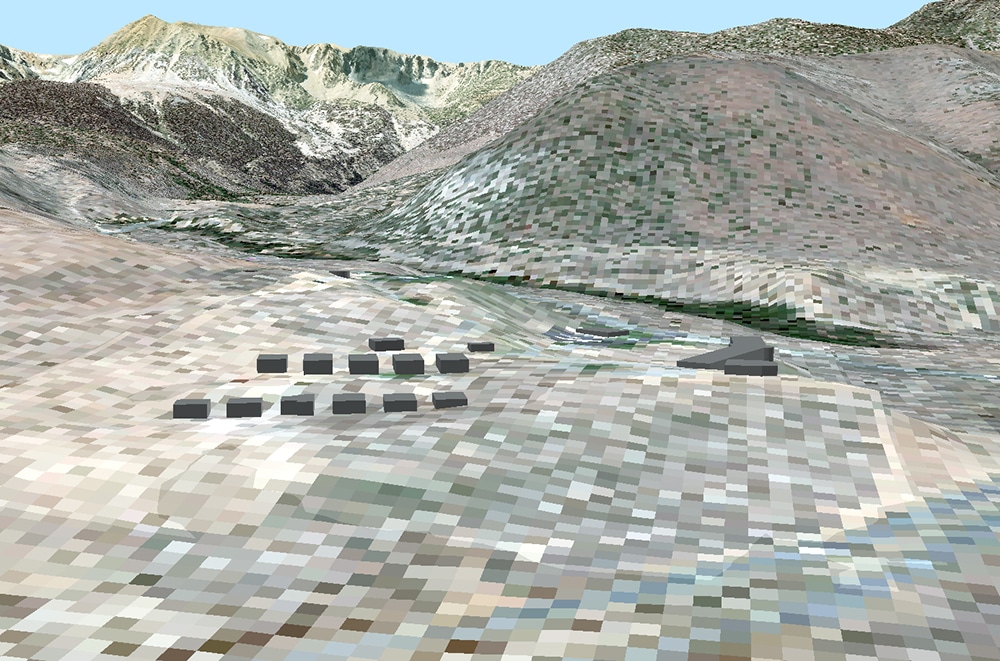

A mountainous landscape is made up of pixilated squares of different shades of green and brown. Several dark gray cube structures sit in the valley.
Figure 2 – Project site topography resulting from the grading proposed in the FSEIR was replicated from EXHIBT 5.1-2 (Alternative 6 Grading Plan) and used to generate an interpolated elevation model in ArcMap. Structure dimensions were similarly replicated from EXHIBT 5.1-2 and assigned RGB color values defined as “Shaker gray,” the color described in the FSEIR. 3-D graphical renderings were executed in ArcScene. Satellite ground imagery extracted from ArcMap’s “imagery” basemap (source: Esri, Maxar, DeoEye, Earthstar Geographics, CNES/Airbus DS, USDA, USCS, AeroGrid, IGN, and the GIS User Community).

What will you see?

Light will catch the structures at different angles throughout the day, producing varying reflection patterns from the sun that could be visible anywhere in the Mono Basin that I’ve identified as “visible” in the Tioga Inn viewshed map (Figure 1). For example, Figure 3 below demonstrates how a 2×3-foot piece of glass positioned adjacent to the project site can very clearly reflect sunlight to South Tufa. This type of visual impact would happen frequently and damage the unique scenery at Mono Lake.

Glassy lake in front of Sierra Nevada with tufa towers reflecting in the morning light with one point of reflection in the lake from a mirror on a hill above.
Figure 3 – Photo taken at South Tufa one hour after sunrise demonstrating the reflective potential of the proposed structures. Reflection was created using a 2×3-foot piece of glass, positioned within the relative proximity of the structures being proposed in the FSEIR. Photo by Bartshe Miller.

What does this all mean?

To understand how this project impacts scenic resources, you need look no further than the FSEIR. The bottom line is clear: the project as proposed will have a “significant and unavoidable direct and cumulative impact” to “Scenic Resources and Visual Character” (p41 of the FSEIR/Updated DSEIR, June 2020). Additional mitigations proposed during the comment period for the DSEIR by the community that could have mitigated these impacts to less than significant were ignored or not used fully by the project proponent.

What this means for me is I will likely see this structure at different times throughout the day. And for the visitor who comes to Mono Lake for the very first time, allured by the scenic beauty they’ve seen in photos, it means that when they go to South Tufa to capture their own photo of the tufa towers, they will see a degraded view instead of the one enjoyed by millions of visitors before them.
